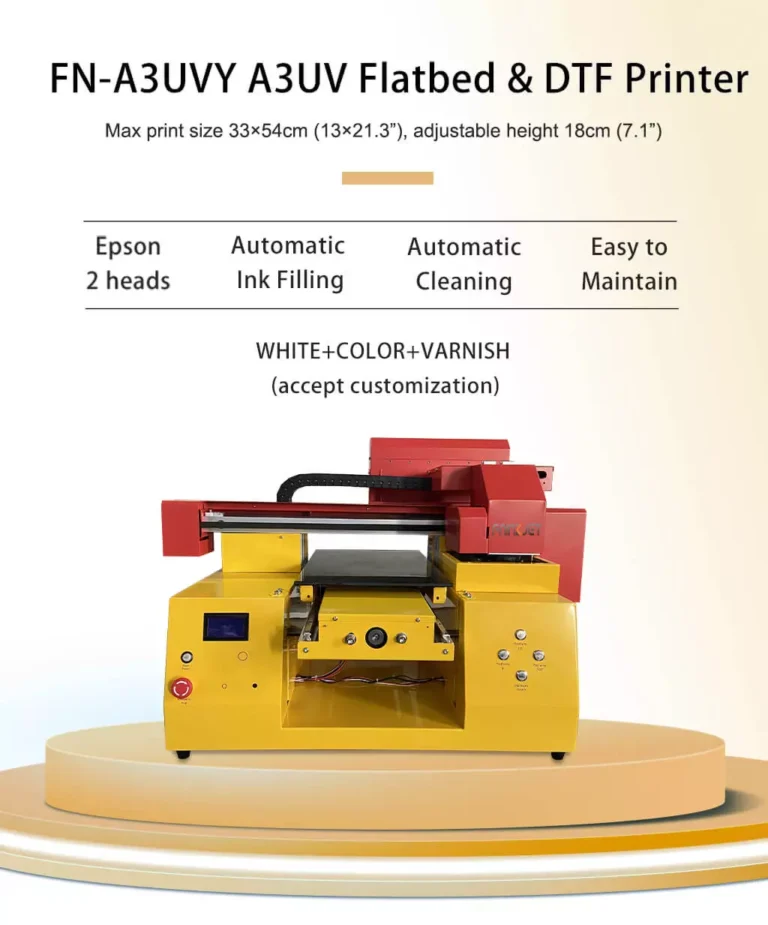

FN-A3UVY UV Printer A3 Flatbed LED UV DTF Printer

Fninkjet UV Printer A3 pro Direct to Plastic Wood Acrylic Metal Cardboard Ceramic Leather UV DTF Film

UV printer A3 pro. With max print size 33*54cm(13*21.3 inch), max print thickness 18cm(7.1 inch). With high resolution, with independent board, the speed won’t slow down anymore. High performance for cylinder application. It can print directly on different materials such as pen, phone cases, golf, wood, gift, stone, artwork, acrylic, leather, glass, UV DTF film and so on, support large ink jet distance 5mm

Model: FN-A3UVY A3 UV Printer
Printhead: Original brand new Epson XP double heads
Ink color: CMYKW+Varnish, with refill ink tank 500ml
Max print size: 330*540mm, adjustable height 0-18cm
Direct to all materials, dry at once, support UV DTF
Multifunction: Phone case / gift item / acylic / metal / glass etc.

A3 UV Printing Machine Features

A3 UV flatbed printer direct to all materials printing machine
Max print size 33*54cm(13*21.3 inch), verticle height 18cm, speed 8 pass 4.5sqm/h
Original Epson XP600 printhead, single or double head
White, color and varnish one pass print, no double light flashing error
Most stable performance can print continuously for 24 hours

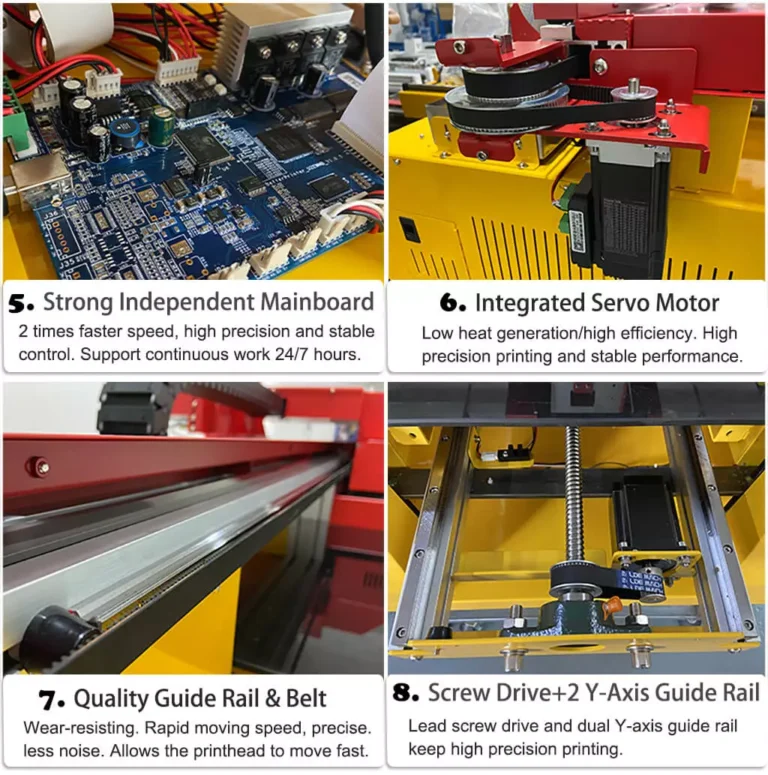

Servo motor with high printing accurate precision
White ink circulation system, protect the printhead
Intelligent unidirectional/bidirectional printing
Integrates automatically blank skipping system
Maintaining the print head by flash spray automatically when standby
Updated software, intelligent ink volume control, saving ink
Large ink jet distance, good for round materials like golfs and bottles

Parameter

Model	FninkJet FN-A3UVY UV Printer Machine A3
Printing Technology	One Printer head advanced Micro Piezo 6 color A3 UV printer inkjet technology
Ink colors (5 colors + Varnish)	Cyan, magenta, yellow, black, white, varnish; CMYK+W+Varnish
Printing speed	8pass, 4.5 sqm/h, 12 pass, 2.2 sqm/h
Print head	Epson original XP600 (single or double head)
Max resolution	720*2880 dpi
transmit data	USB
Max Printing Size	A3+ (330mm×540mm)
Max thickness	180 mm
Printer head Protection	Intelligent Self Protect System
Ink system	Continue ink supply system with damper cartridge
Ink bottle	Negative pressure ink supply system with refill ink tank each color 500ml
Height adjustment	Semi-automation
Ink consumption	10 ML/SQM
Voltage/ Power	VAC220/110 ± 10 ，50HZ~60HZ，Power ≤ 35W
UV lamp power	50 W
UV lamp Temperature	60 degree(UV lamp surface) UV lamp surface
UV lamp Temperature	40 degree (1cm far from lamp surface)
Working environment	10-35 degrees （50°-95°F）, humidity 20～80%
Head Cleaning method	Automatic / Manual

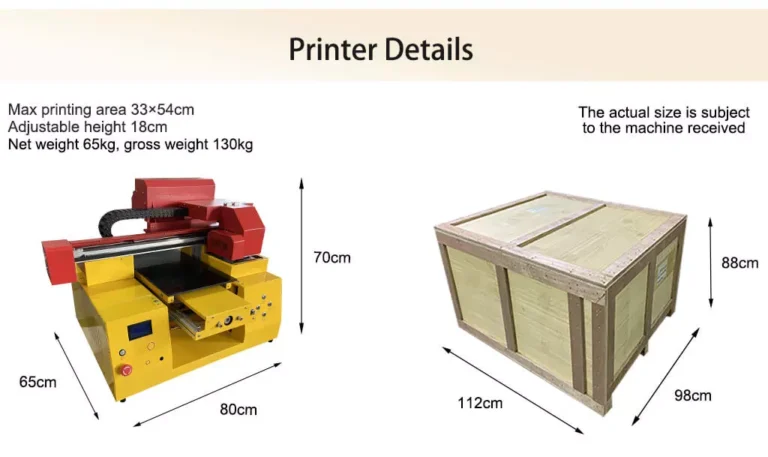

Printer/packing size	806570cm / 1129888cm
Net /Packing weight	65kg / 130kg
Printing Software	Ultraprint, RIPrint, print white and color by one pass
Computer system	Windows system, Gigabit net, network adapter contain below character: Gigabit、GBE、10/100/1000M、RTL8169
Ink Type	UV ink/ Textile Ink/ Edible ink
Language	English, Chinese
Special Remarks	Customized service is available
Standard Enclosure	Software 1 set, power line 1 set, Network line 1set, guidebook 1 set
Application	Phone case / ABS plastic / acylic / metal / glass / ceramic

After-service and Warranty

1. Online training one-to-one (by WhatsApp, WeChat, email, video, etc).
2. English operation video, English technician online free training.
3. Printer with one year warranty and lifetime maintenance.
4. Seller will replace the spare parts for free in one year except for the print head, CISS, and clean unit.

Packing&Shipping

Shipping details
Packing type	Fumigation free wooden case/PLY wood case
Printer size	806570cm
Packing size	1129888cm
Gross weight	65kg
Volume weight	130kg
Package included	USB cable/power cable/program/sensor/damper
Shipping Type	Express(DHL,EMS,UPS,TNT,FedEx)/Air shipping/Sea shipping
Certificate	CE, SGS, MSDS, CO, SASO etc

A 6090 UV printer (short for Ultraviolet printer) is a type of digital printing machine that uses ultraviolet light to cure or dry ink as it is printed. Unlike traditional printers that allow ink to absorb into the material or air-dry, UV printers instantly harden the ink using UV light, which enables printing on a wide variety of surfaces.
