FN-A3YD A3 Double Heads A3 DTG Printer

A3 dtg printer

Hot Sale A3 DTG Printer Direct to Garment Printer

A3 DTG printing machine

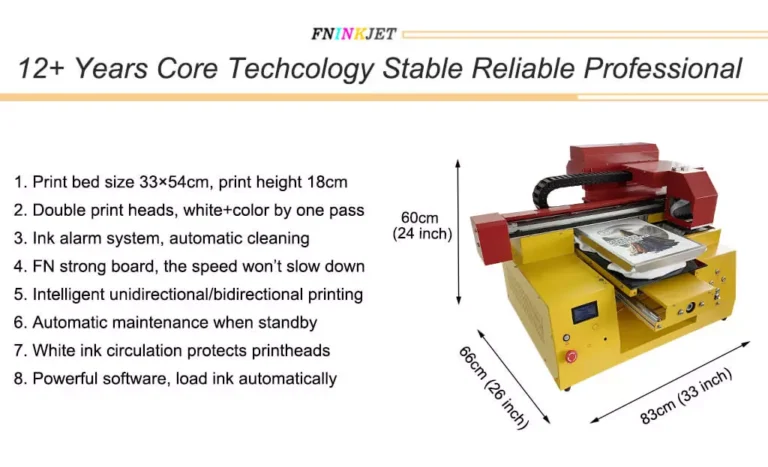

A3 DTG printer, which is the most popular. With max print size 33*50cm(13*20 inch), max print thickness 18cm(7.1 inch). The printer with Epson original XP600 double printhead, one head for color ink, another head for white ink, so it can print the best effect on black shirts. It is a perfect size for small businesses, you can use it at home or at your shop. As the machine uses our independent board, the speed won’t slow down anymore. In addition, double light flashing won’t appear, there won’t appear ink error or paper Jamno need to do zero cleaning anymore. Especially, this machine’s printing speed is 2 times faster than the old Epson 1390printing result is vivid color, with very soft hand feeling

t-shirt printing sample
t-shirt printing sample

Multi-functional A3 DTG Printer for Sale, for Small Business

1) The A3 t-shirt printer can perform colorless color printing on T-shirts of any color such as black, red, white, etc.
2) It can print white, and the full-color gradient color can be printed at one time.
3) The washing fastness is grade 3-4, fully in line with international general standards.
4) The ink is environmentally friendly and fully meets the highest testing standards of the European Union.
5) The T-shirt printing machine is connected to the computer through USB. After editing the size and position of the picture through the special RIP software, the printing command is sent directly.
6) The operation is simple, no plate making is required, and full color is printed at one time. Compared with traditional crafts, it has bright colors, good hand feeling, good air permeability, long-term washing, no fading, no peeling, and no cracking.

Multi-fuctional t-shirt printer

*Fast speed, 2 times faster than R1390 t-shirt printer.
*Printing speed won’t slow down after a long time.
*No ink error and paper jam, no need zero clean.
*For light color fabrics, no need for pre-treatment, print directly.

*Print white and color by one pass. Or white first, color later.
*White ink circulation system, protect the printhead.
*The washing fastness grade is 3-4. Soft hand feeling, breathable.
*Resolution 2880*720dpi, no printing line.

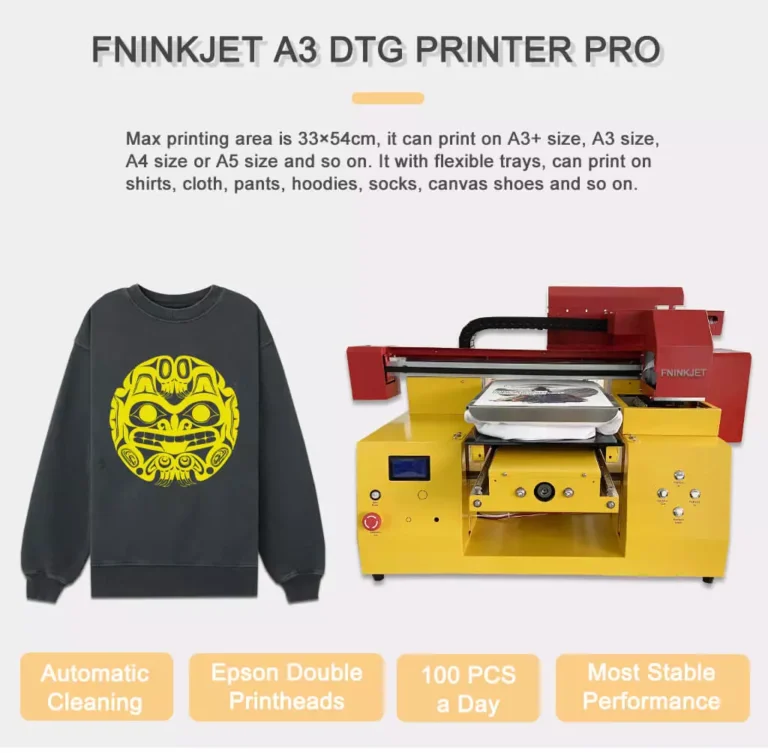

A3 DTG Printer Introduction

Printer Details

Parameter

ModelFN-A3YD A3 DTG printer, direct to garment printing machine
Printing TechnologyOne Printer head advanced Micro Piezo 6 color pigment inkjet technology
Ink colors (6 colors + Vanish)Cyan, magenta, yellow, black, white, white; or CMYK+6W;
Printing speed8pass, 70s/A4 full size
Print head Epson original XP600 (single head or double head)
Max resolution2880*720 DPI, 16 pass
transmit dataGigabit net
Max Printing SizeA3+ (330mm×500mm)
Max thickness180 mm
Printer head ProtectionIntelligent Self Protect System
Ink systemContinue ink supply system with damper cartridge
Ink bottle 6 set Ink Tanks with 500ml or 250ml per bottle
Height adjustmentSemi-automation
Ink consumption10 ML/SQM
Voltage/ Power VAC220/110 ± 10 ,50HZ~60HZ,Power ≤ 35W
Working environment10-35 degrees (50°-95°F), humidity 20~80%
Head Cleaning methodAutomatic / Manual
Printer/packing size106*66*58cm / 120*80*75cm
Net /Packing weight65kg / 125kg
Printing SoftwareRuicai RIPrint, print white and color by one pass
Computer systemWindows system, Gigabit net, network adapter contain below character: Gigabit、GBE、10/100/1000M、RTL8169
Ink TypeUV ink/ Textile Ink/ Edible ink
LanguageEnglish, Chinese
Special RemarksCustomized service is available
Standard EnclosureSoftware 1 set, power line 1 set, Network line 1set, guidebook 1 set
Application On any fabrics (cotton, polyester, cotton and linen, etc)

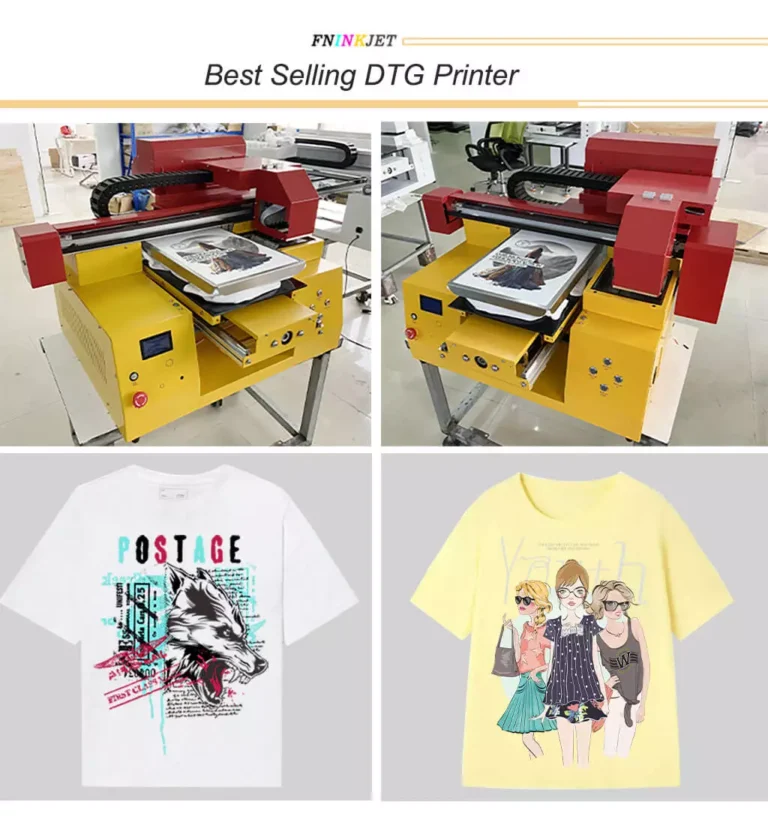

Printing effect
t-shirt printing

Why this A3 DTG printer?
1. One pass for a dark t-shirt. As we offer customers the newest RIPint version software, it can help you print on a dark t-shirt by one pass, which can help you reduce much printing time.

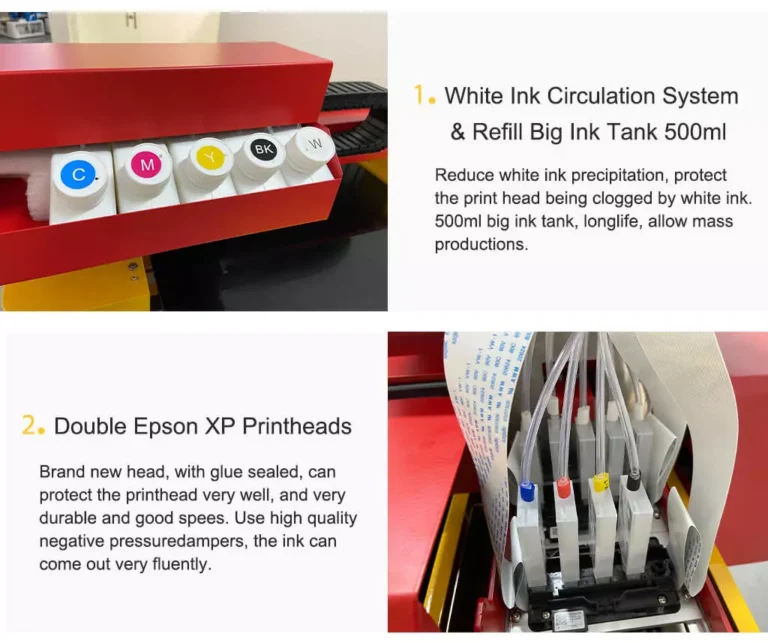

2. White ink circulation system, the white ink will be flowing every 30 minutes from the ink tube to the ink cartridge/damper, which will protect the printer head be blocked by the white ink.
3. High-end display screen that can help you know all the printing situation of your printer.
4. Pump Onekey: Do the ink suction automatically, no need to do the ink suction by hand anymore.
5. Auto Onekey: Printer with head protection system, adjust the height automatically. It can protect the printer head from knocking, no need to adjust the printing distance by hand while it is printing. After adjusting the printing distance, the printer will feed your products to the printer and print directly.
6. One “Click” to print: no matter where your printer platform is after you put your products on the platform and click ” Print ” in the newest RIPrint software, the printer will feed the product’s print directly. The printing is pretty easy.

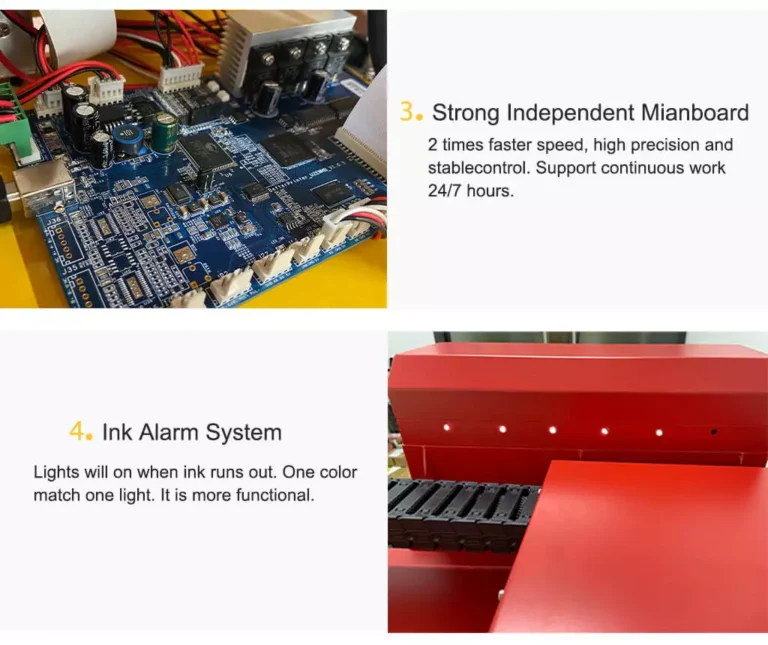

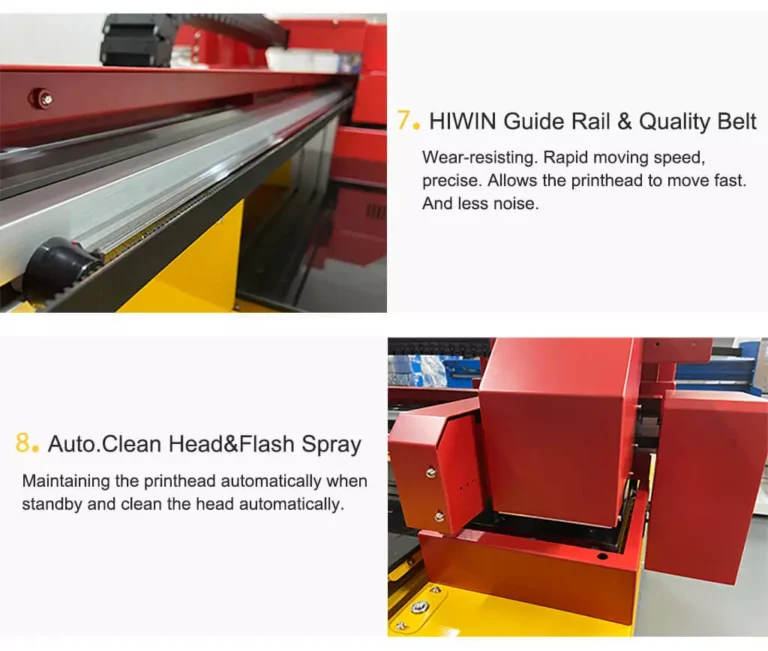

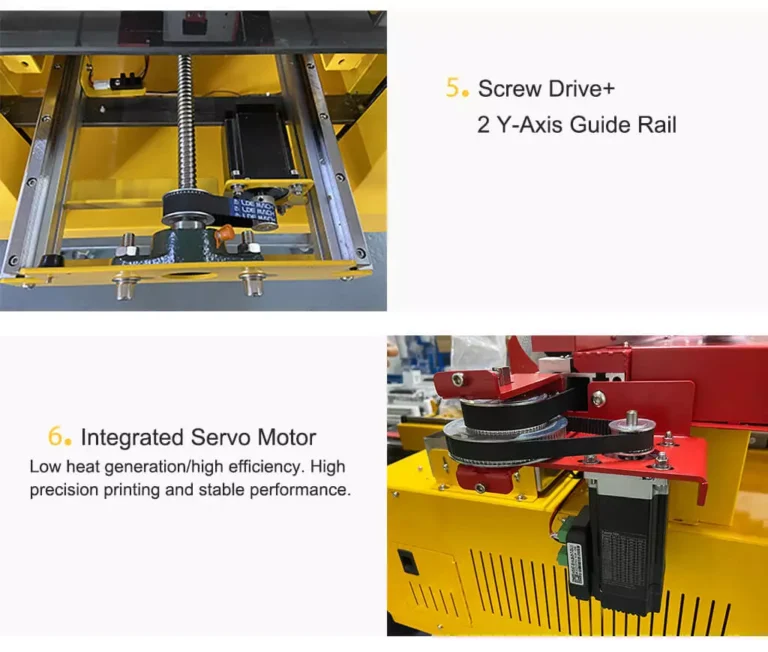

Printer Details

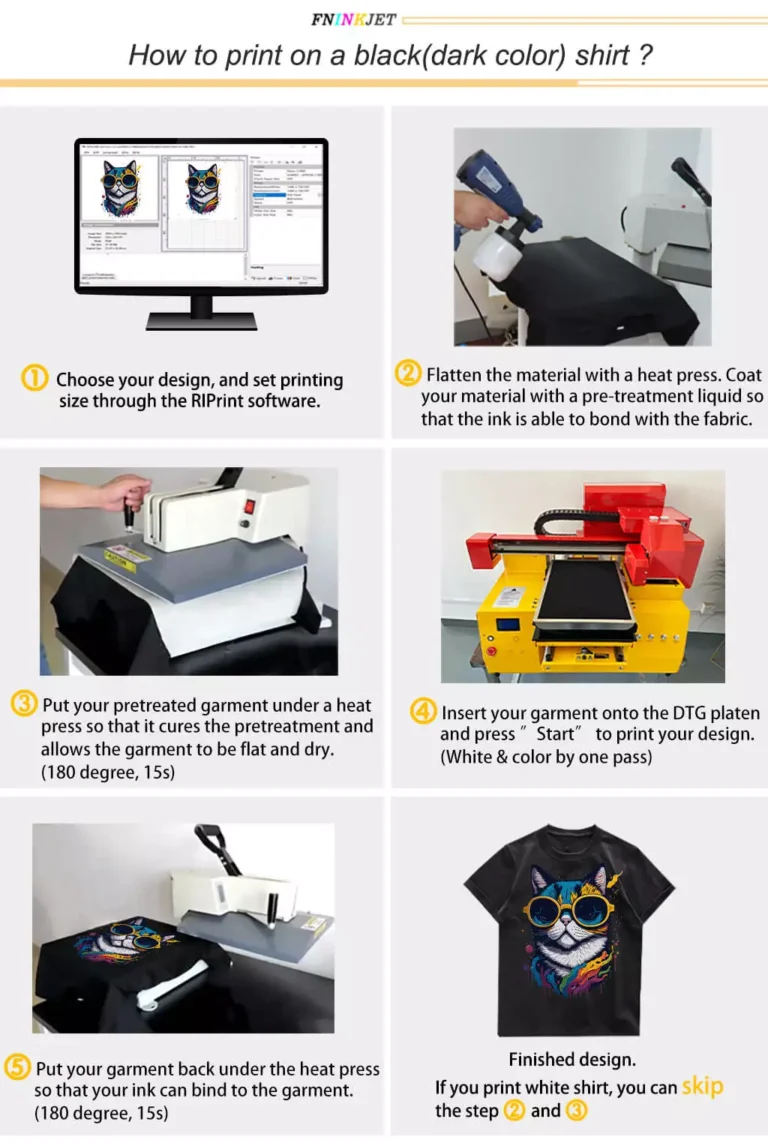

Working Process of A3 t-shirt Printing Machine

A3 t-shirt printing process

After-service and Warranty

1. Online training one-to-one (by WhatsApp, WeChat, email, video, etc).
2. English operation manual, operation video.
3. Printer with one year warranty and lifetime maintenance.
4. Seller will replace the spare parts for free in one year except for the print head, CISS, and mainboard.

Packing&Shipping

Shipping details
Packing typeFumigation free wooden case/PLY wood case
Printer size106*66*58cm
Packing size120*80*75cm
Gross weight65kg
Volume weight125kg
Package includedUSB cable/power cable/CD driver/manual/ink adding tools
Shipping TypeExpress(DHL,EMS,UPS,TNT,FedEx)/Air shipping/Sea shipping
CertificateCE, SGS, MSDS, CO, SASO etc
