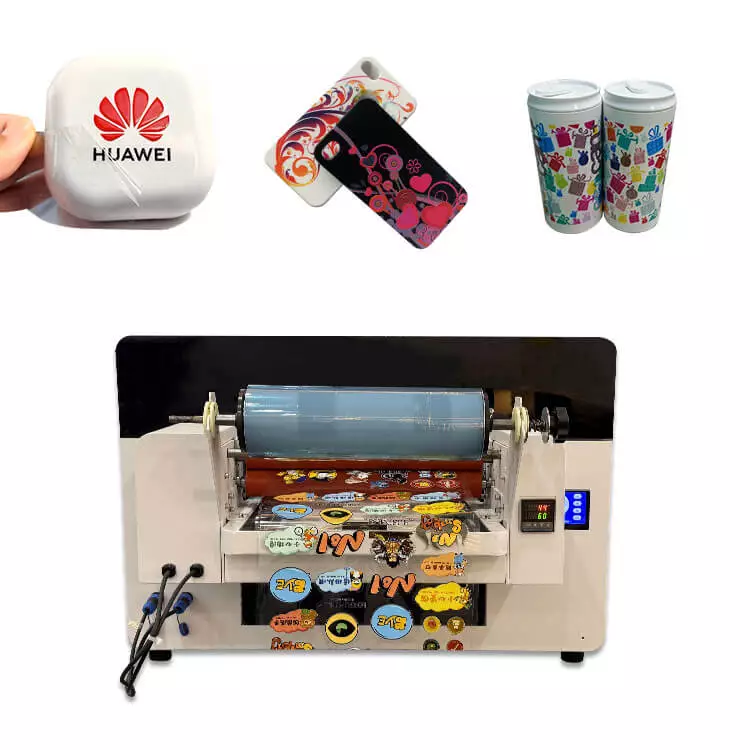

FN-4050UVR UV DTF Sticker Printer and UV Flatbed Printer all in one

uv dtf sticker printer

High Quality Best 4050 UV Flatbed and Roll to Roll UV DTF Sticker Printer 2 in 1

UV DTF sticker printer and UV flatbed printer. With max print size. 40*50cm(15.75*19.68 inch), max print thickness 15cm(6 inch). With high resolution, with independent board, the speed won’t slow down anymore. With a height sensor. It can print directly on different materials such as pen, phone cases, golf, wood, gift, stone, artwork, acrylic, leather, glass, and can be used as a UV DTF roll to roll printer.

  • Model: FN-4050UVR A3 Plus UV DTF Printer and DTF
  • Printhead: Original Epson XP600 2 pcs or DX7  optional
  • Ink color:  CMYKW+Varnish, with refill ink supply system
  • Max print size: 400*500mm, adjustable height 0-15cm
  • Integrated design, direct print on all materials, and UV DTF film
  • Multifunction: Phone case / gift item / acrylic / metal / glass etc.

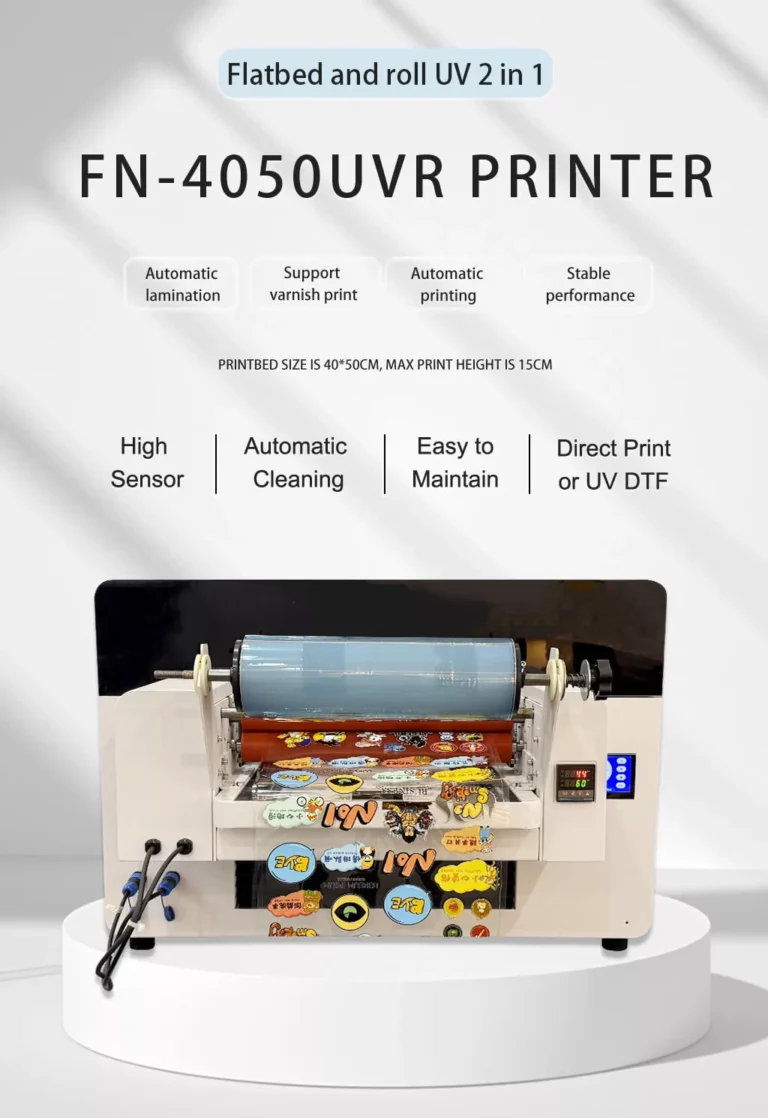

4050UVR 1024 01

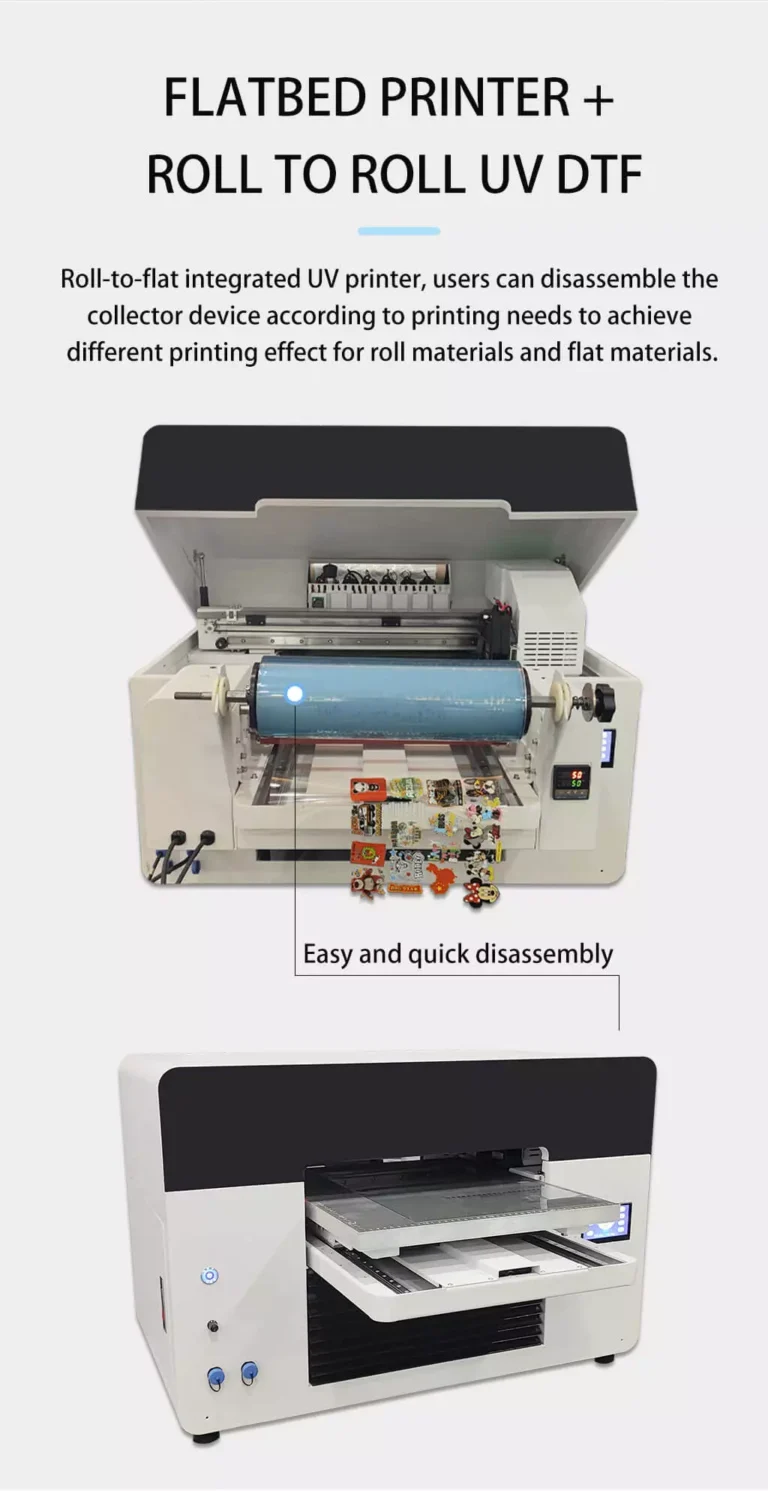

4050UVR 1024 02
4050UVR 1024 03
4050UVR 1024 04

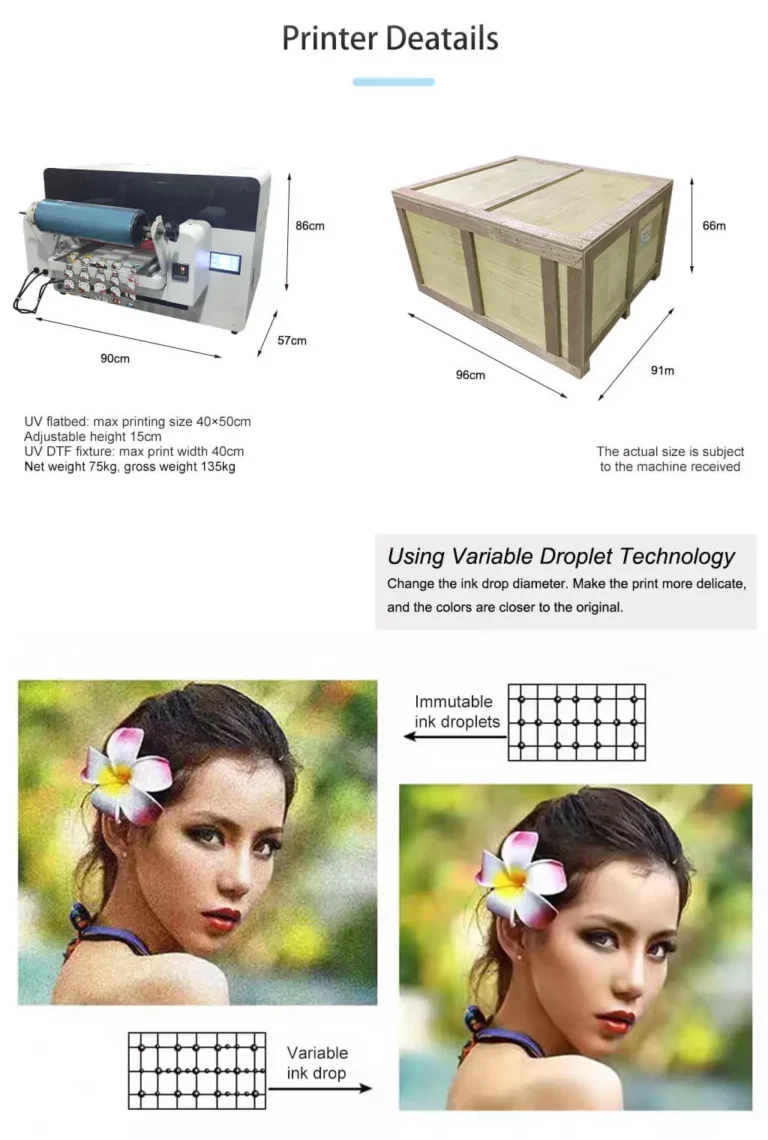

4050UVR 1024 05

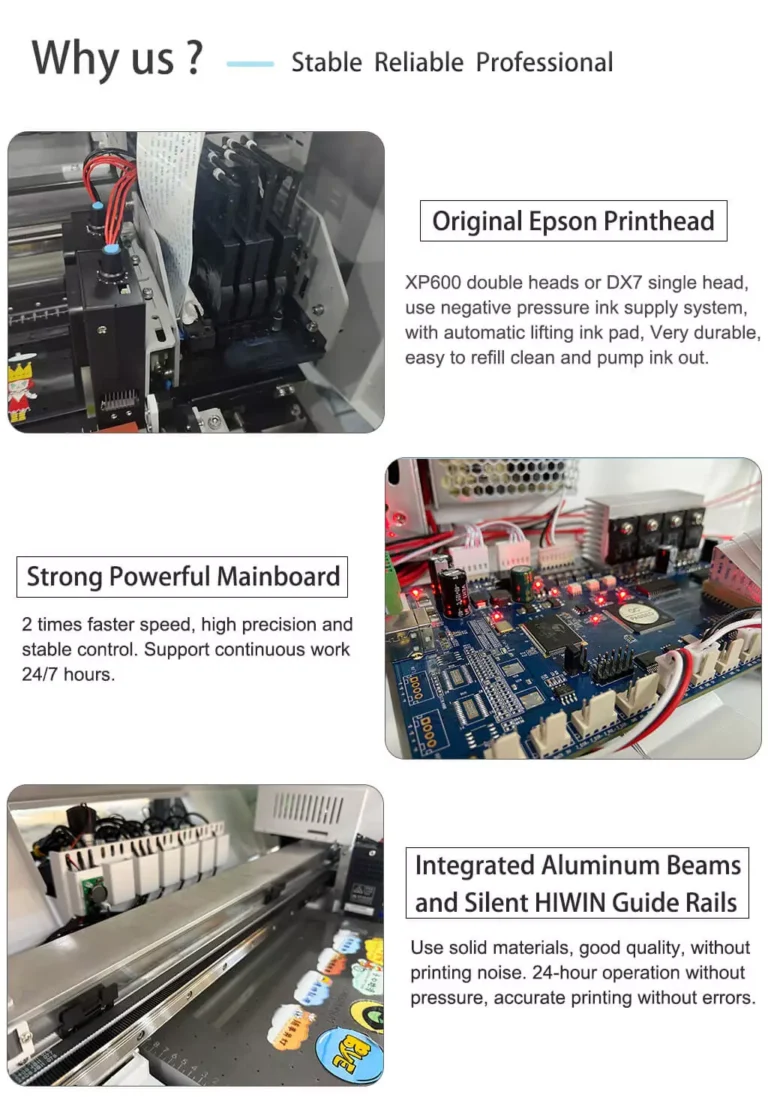

4050UVR 1024 06

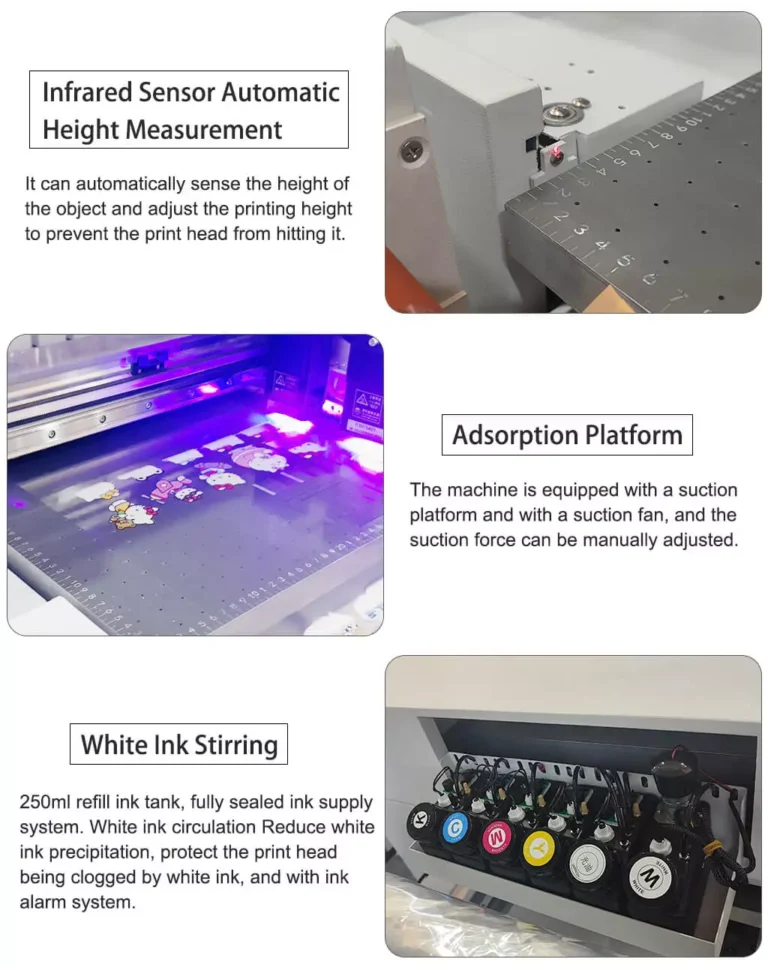

4050UVR 1024 07

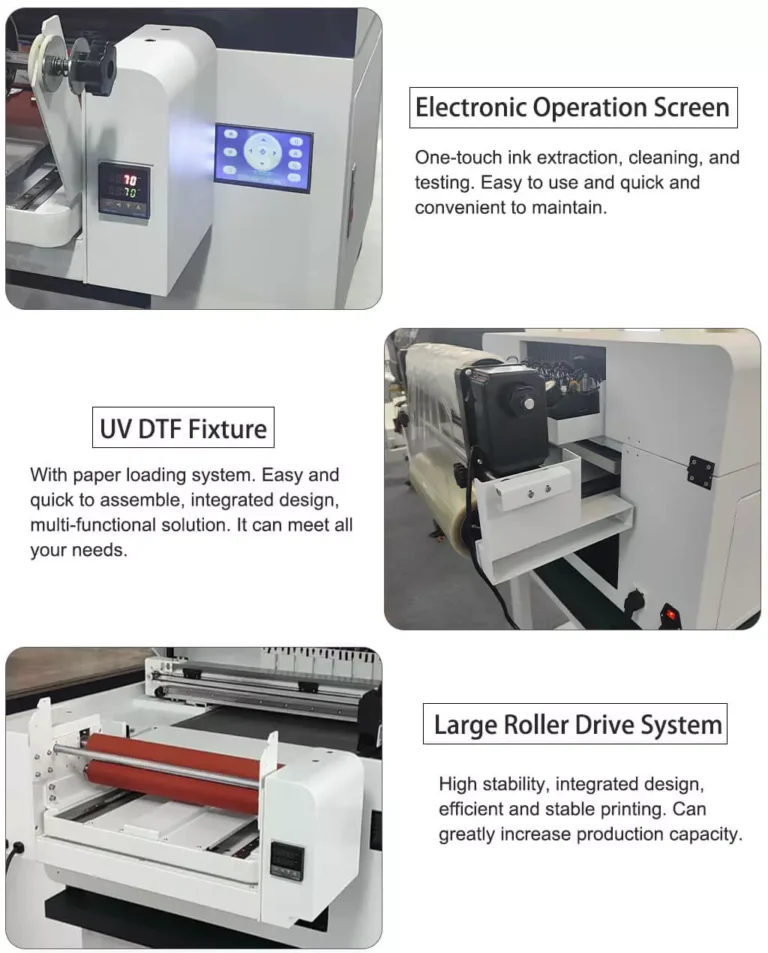

4050UVR 1024 08

4050 UV Printer Features

* Original brand new Epson XP600 2pcs or DX7
* Most stable performance, can print continuously for 24 hours
* Automatic cleaning print head function
* Ink alarm system, light will be on when ink level is low
* White ink circulation system, can protect the print head
   Effectively prevent white ink from clogging the print head
   Extend the service life of the head and make printing effect more colorful
* Servo motor with high printing accurate precision
* Intelligent unidirectional/bidirectional printing
* Integrates automatically blank skipping system
* Maintaining the print head by flash spray automatically when standby
* Support emergency stop while in printing
* High resolution 720*2880 dpi, no printing line
* Printing speed won’t slow down after a long time
* Updated software, intelligent ink volume control, automatic ink counting, saving ink

Parameter

After-service and Warranty

ModelFN-4050UVR A3 Plus UV printer plus
Printing TechnologyOne Printer head advanced Micro Piezo 6 color uv inkjet technology
Ink colors Cyan, magenta, yellow, black, white, varnish;  CMYK+W+Varnish (varnish is optional)
Printing speed8pass, 4.5 SQM/H
Print head Epson original XP600 or DX7
Max resolution720*2880 dpi
transmit dataUSB
Max Printing SizeA3+ (400mm×500mm)
Max thickness150 mm
Printer head ProtectionIntelligent Self Protect System
Ink systemContinue ink supply system with damper cartridge
Ink bottle Refill Ink Tanks with 500ml per bottle
Height adjustmentAutomation
Ink consumption10 ML/SQM
Voltage/ Power VAC220/110 ± 10 ,50HZ~60HZ,Power ≤ 35W
UV lamp power50 W
UV lamp Temperature60 degree(UV lamp surface) UV lamp surface
40 degree (1cm far from lamp surface)
Working environment10-35 degrees (50°-95°F), humidity 20~80%
Head Cleaning MethodAutomatic / Manual
Printer/packing size90*57*86cm / 96*91*66cm
Net /Packing weight75kg / 135kg
Printing SoftwareUltraprint, better print, Ruicai RIPrint, print white and color by one pass
Computer systemWindows system, Gigabit net, network adapter contain below character: Gigabit、GBE、10/100/1000M、RTL8169
Ink TypeUV ink
LanguageEnglish, Chinese
Special RemarksCustomized service is available
Standard EnclosureSoftware 1 set, power line 1 set, Network line 1set
Application Phone case / ABS plastic / acrylic / metal / glass / ceramic etc.

1. Online training one-to-one (by WhatsApp, WeChat, email, video, etc).
2. English operation video, English technician online free training.
3. Printer with one year warranty and lifetime maintenance.
4. Seller will replace the spare parts for free in one year except for the print head, CISS, and clean unit.

Packing&Shipping

Shipping details
Packing typeFumigation free wooden case/PLY wood case
Printer size90*57*86cm
Packing size96*91*66cm
Gross weight75kg
Volume weight135kg
Package includedUSB cable/power cable/program/sensor/damper
Shipping TypeExpress(DHL,EMS,UPS,TNT,FedEx)/Air shipping/Sea shipping
CertificateCE, SGS, MSDS, CO, SASO etc

A UV printer (short for Ultraviolet printer) is a type of digital printing machine that uses ultraviolet light to cure or dry ink as it is printed. Unlike traditional printers that allow ink to absorb into the material or air-dry, UV printers instantly harden the ink using UV light, which enables printing on a wide variety of surfaces.

What a UV Printer Can Do:
1. Print on Almost Any Material
Plastic, Glass, Wood, Metal, Ceramic, Leather, Acrylic, Paper/cardboard, Fabric (limited use)
2. High-Quality, Full-Color Printing
Photorealistic prints with high resolution. Crisp details and vivid colors. Spot gloss and texture effects (with clear varnish layers).
3. Print on Uneven or 3D Surfaces
Unlike regular inkjets or laser printers, UV printers can print over slightly raised or textured surfaces.
4. Durable & Scratch-Resistant Prints
The cured ink is very durable, making it great for products that will be handled, exposed to sunlight, or placed outdoors.
5. Custom & Short-Run Jobs
Perfect for on-demand printing with no need for plates or screens. Ideal for prototyping, customization, and personalization (e.g., phone cases, promotional items).
6. Special Effects
Raised printing (embossed texture). Gloss, matte, or selective varnish finishes.

Common Applications:
Signage and Displays. Product Packaging Mockups. Custom Phone Cases. Promotional Items (pens, USBs, etc.). Industrial Labels and Panels. Art Reproductions. Awards and Plaques

If you’re looking into one for business, it’s especially useful for customization, small-scale production, or niche markets where flexibility and speed are key. Would you like help choosing a model or exploring business ideas with a UV printer? Send us inquiry.
