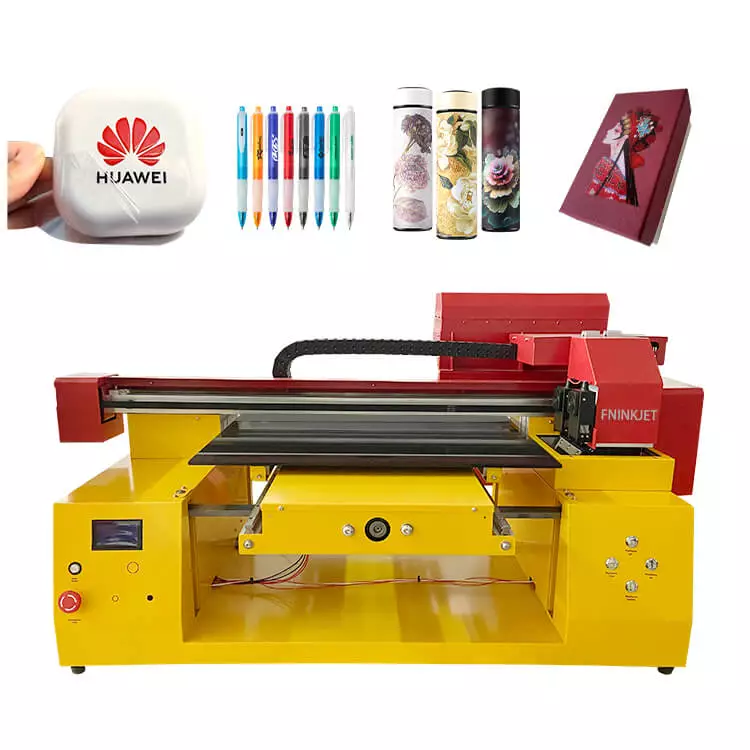

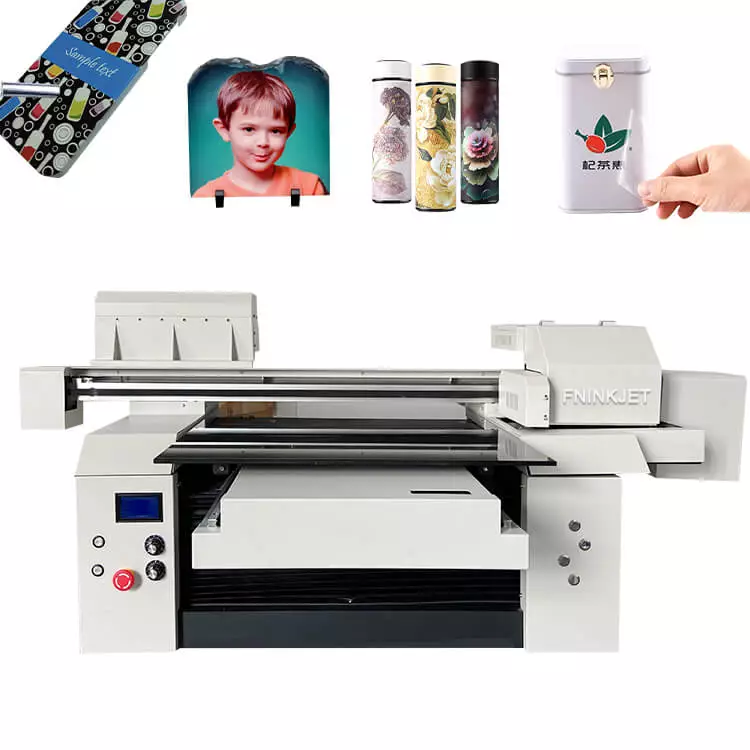

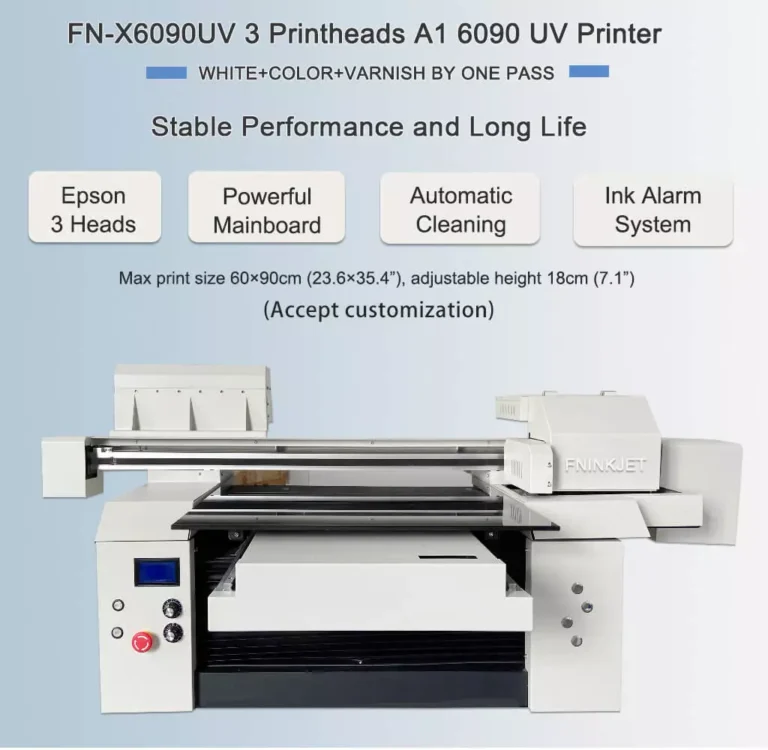

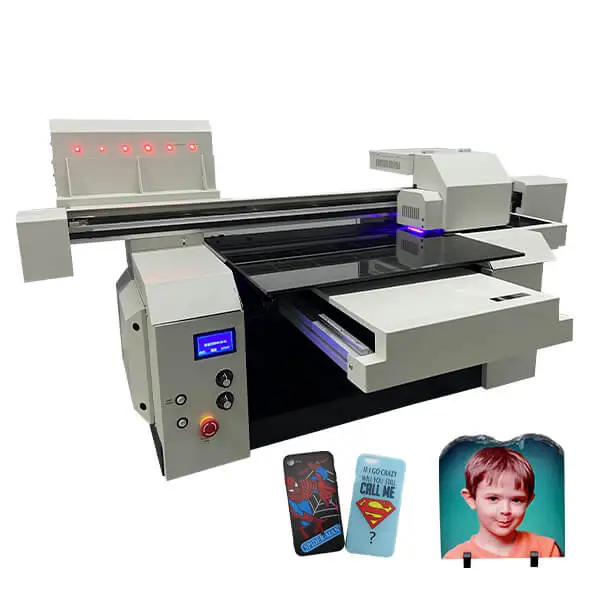

FN-X6090UV Flatbed UV Printer 6090
A1 Size 3 Heads Flatbed LED UV Printer 6090 UV DTF Printer
A1 6090 UV flatbed printer. With max print size 60*90cm(23.6*35.4 inch), max print thickness 18cm(7.1 inch). With high resolution, with independent board, the speed won’t slow down anymore. High performance for cylinder application. It can print directly on different materials such as pen, phone cases, golf, wood, gift, stone, artwork, acrylic, leather, glass, UV DTF film and so on, support large ink jet distance 5mm
- Model: FN-X6090UV A1 6090 UV Printer
- Printhead: Original brand new Epson XP 3 heads
- Ink color: CMYKW+Varnish, with refill ink tank 500ml
- Max print size: 600*900mm, adjustable height 0-18cm

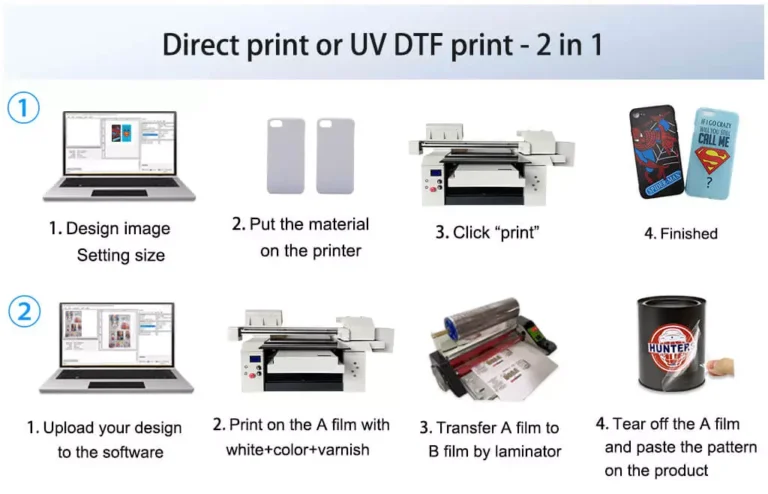

- Direct to all materials, dry at once, support UV DTF
- Multifunction: Phone case / gift item / acylic / metal / glass etc.

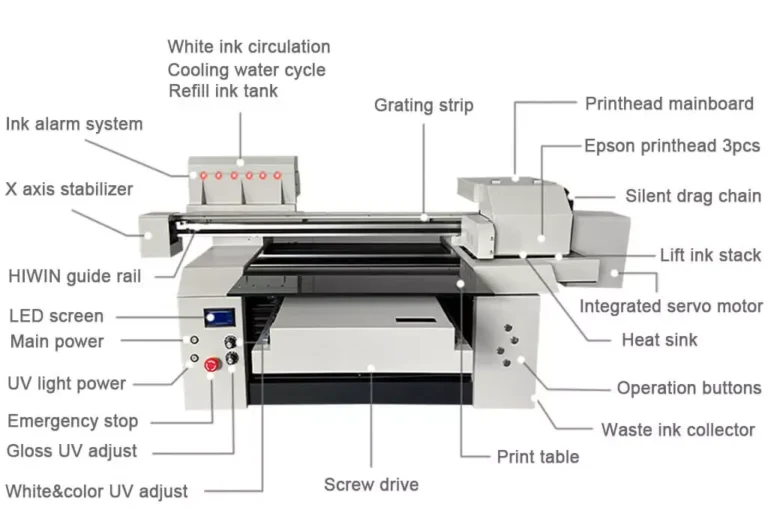

A1 UV Flatbed Printer 6090 Features
- A1 6090 uv printer direct to all materials printing machine
- Max print size 60*90cm(23.6*35.4 inch), verticle height 18cm, speed 8 pass 4.5sqm/h
- Original Epson XP printhead 3 pcs, colors CMYK+W+V
- White+color+varnish one pass print, no double light flashing error
- Most stable performance can print continuously for 24 hours

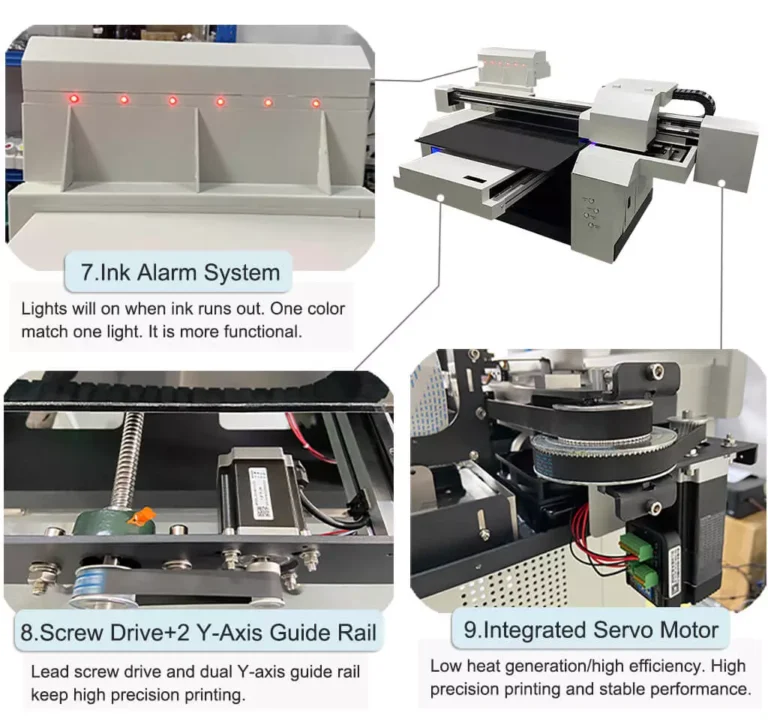

- Servo motor with high printing accurate precision

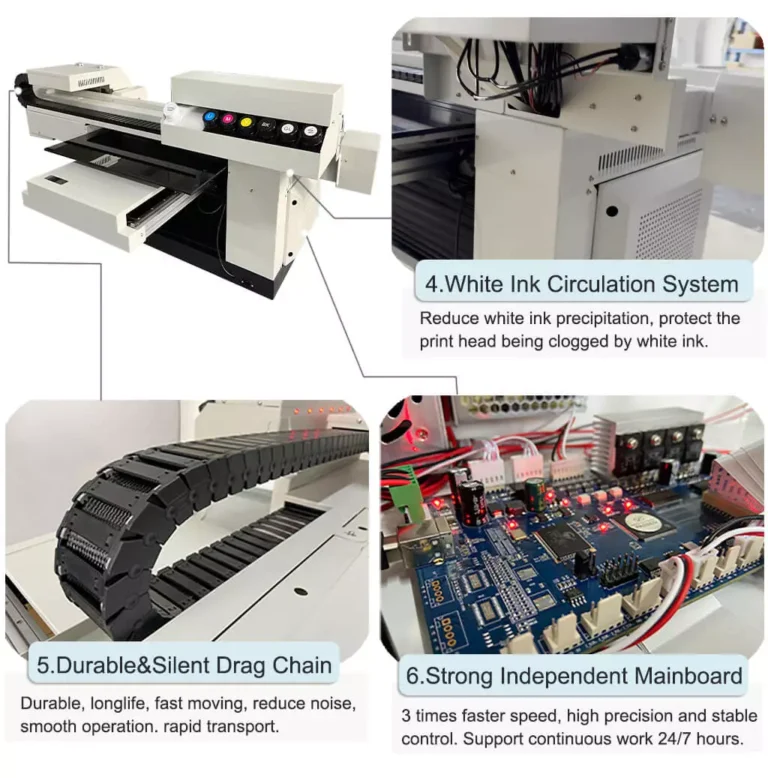

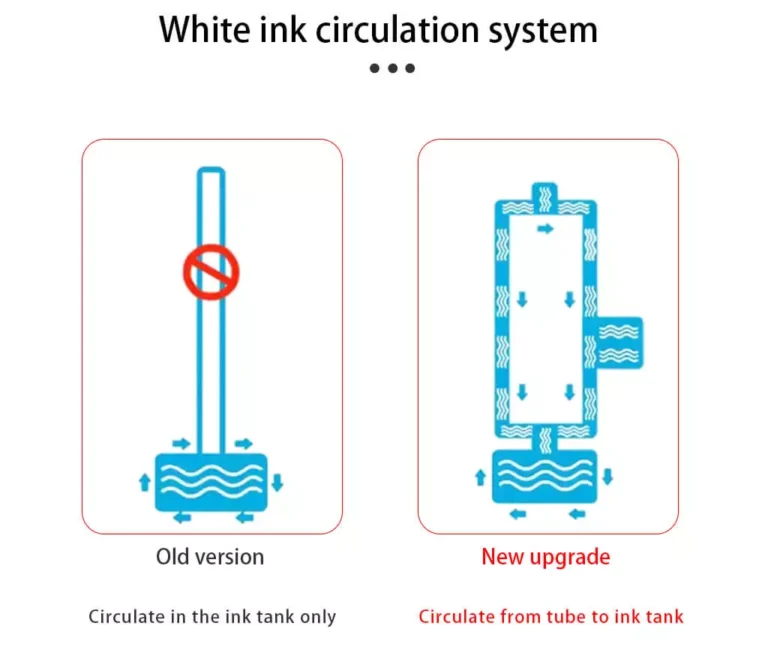

- White ink circulation system, protect the printhead
- Intelligent unidirectional/bidirectional printing

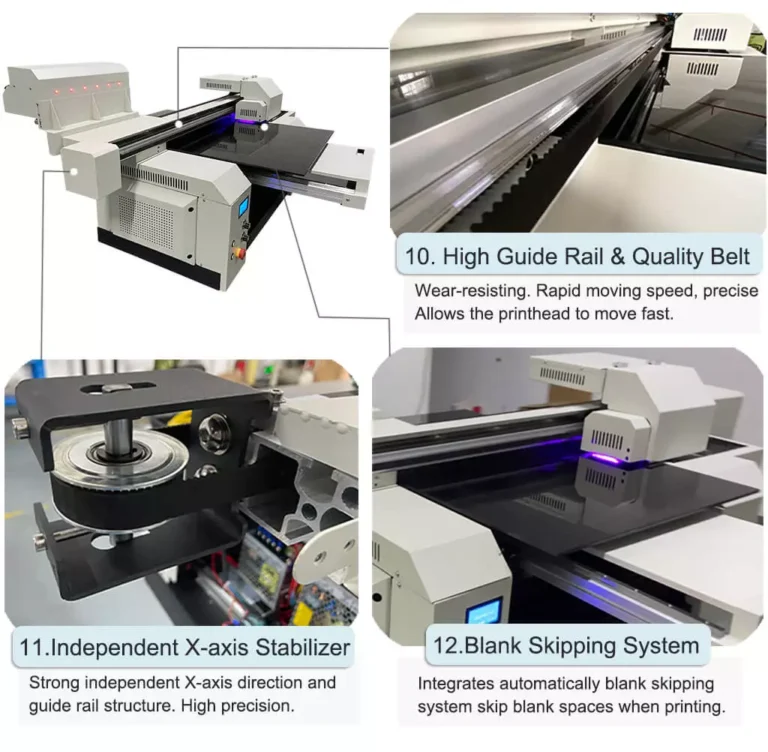

- Integrates automatically blank skipping system

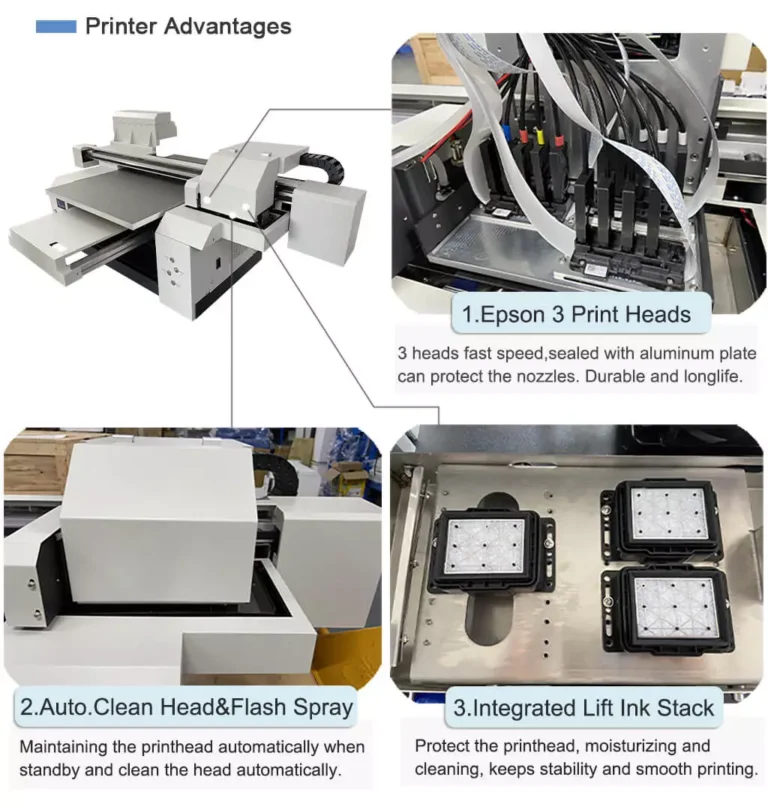

- Maintaining the print head by flash spray automatically when standby
- Updated software, intelligent ink volume control, saving ink
- Large ink jet distance 5mm, variable droplet technology
More Features
*Precision printing due to the servo motor-driven printing table.
*Optimal cost saving due to the continued ink supply system and simplified maintenance.
*Safe operation with the Automated printhead cleaning system.

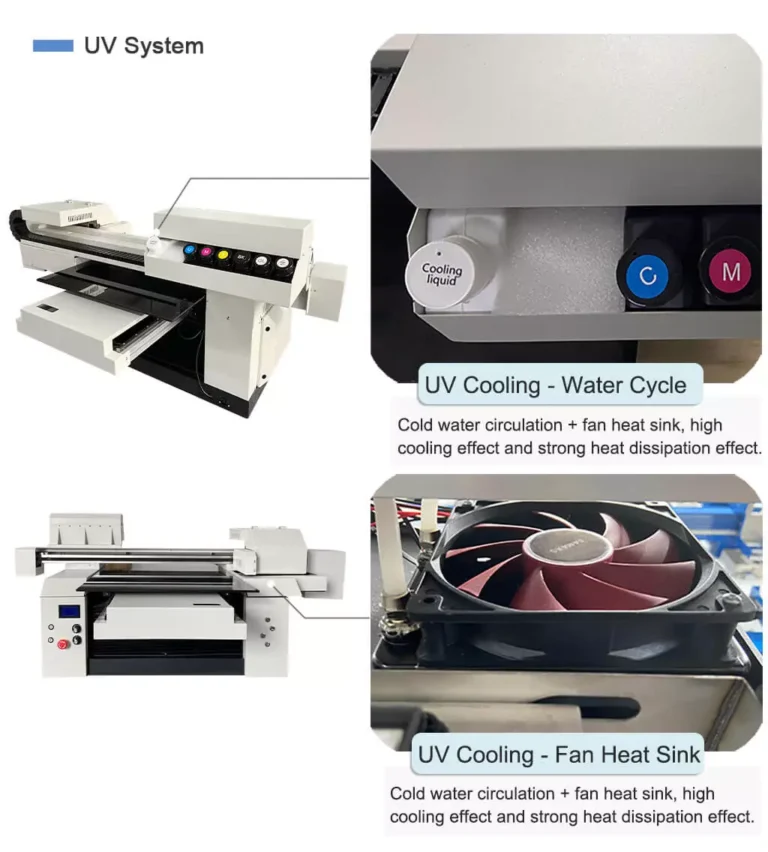

*Extended UV led life due to build in water circle & fan cooling system.
*Printhead keeps good condition with the flash on ink firing technology
Parameter
| Model | FninkJet FN-X6090UV A1 UV Printer |
| Printing Technology | One Printer head advanced Micro Piezo 6 color 6090 UV printer inkjet technology |
| Ink colors (5 colors + Varnish) | Cyan, magenta, yellow, black, white, varnish; CMYK+W+Varnish |
| Printing speed | 8pass, 4.5 sqm/h, 12 pass, 2.2 sqm/h |
| Print head | Epson original XP500 (3 heads) |
| Max resolution | 720*2880 dpi |
| transmit data | USB |
| Max Printing Size | A1 (600mm×900mm) |
| Max thickness | 180 mm |
| Printer head Protection | Intelligent Self Protect System |
| Ink system | Continue ink supply system with damper cartridge |
| Ink bottle | Negative pressure ink supply system with refill ink tank each color 500ml |
| Height adjustment | Semi-automation |
| Ink consumption | 10 ML/SQM |
| Voltage/ Power | VAC220/110 ± 10 ，50HZ~60HZ，Power ≤ 35W |
| UV lamp power | 50 W |
| UV lamp Temperature | 60 degree(UV lamp surface) UV lamp surface |
| 40 degree (1cm far from lamp surface) | |
| Working environment | 10-35 degrees （50°-95°F）, humidity 20～80% |
| Head Cleaning method | Automatic / Manual |

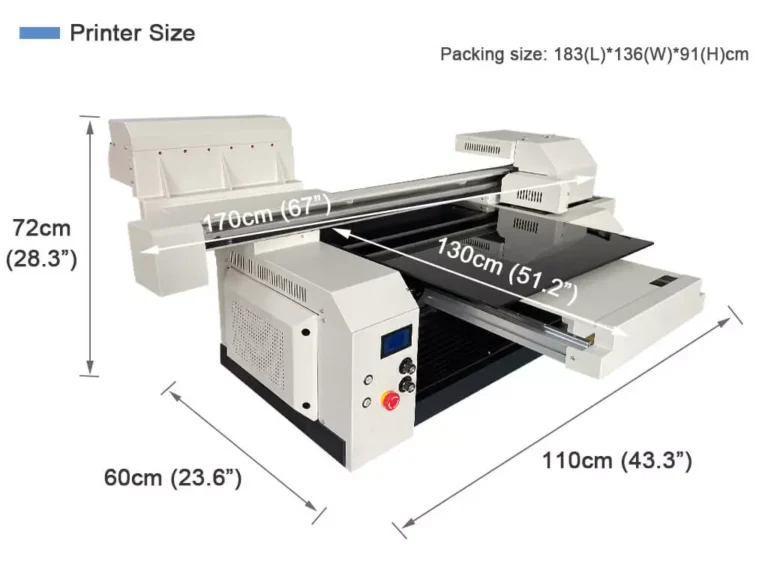

| Printer/packing size | 170*130*72cm / 183*136*91cm |
| Net /Packing weight | 180kg / 300kg |
| Printing Software | Ultraprint, RIPrint, print white and color by one pass |
| Computer system | Windows system, Gigabit net, network adapter contain below character: Gigabit、GBE、10/100/1000M、RTL8169 |
| Ink Type | UV ink/ Textile Ink/ Edible ink |
| Language | English, Chinese |
| Special Remarks | Customized service is available |
| Standard Enclosure | Software 1 set, power line 1 set, Network line 1set, guidebook 1 set |
| Application | Phone case / ABS plastic / acylic / metal / glass / ceramic |
After-service and Warranty
1. Online training one-to-one (by WhatsApp, WeChat, email, video, etc).
2. English operation video, English technician online free training.
3. Printer with one year warranty and lifetime maintenance.
4. Seller will replace the spare parts for free in one year except for the print head, CISS, and clean unit.
Packing&Shipping
| Shipping details | |
| Packing type | Fumigation free wooden case/PLY wood case |
| Printer size | 170*130*72cm |
| Packing size | 183*136*91cm |
| Gross weight | 180kg |
| Volume weight | 300kg |
| Package included | USB cable/power cable/program/sensor/damper |
| Shipping Type | Express(DHL,EMS,UPS,TNT,FedEx)/Air shipping/Sea shipping |
| Certificate | CE, SGS, MSDS, CO, SASO etc |
A 6090 UV printer (short for Ultraviolet printer) is a type of digital printing machine that uses ultraviolet light to cure or dry ink as it is printed. Unlike traditional printers that allow ink to absorb into the material or air-dry, UV printers instantly harden the ink using UV light, which enables printing on a wide variety of surfaces.
