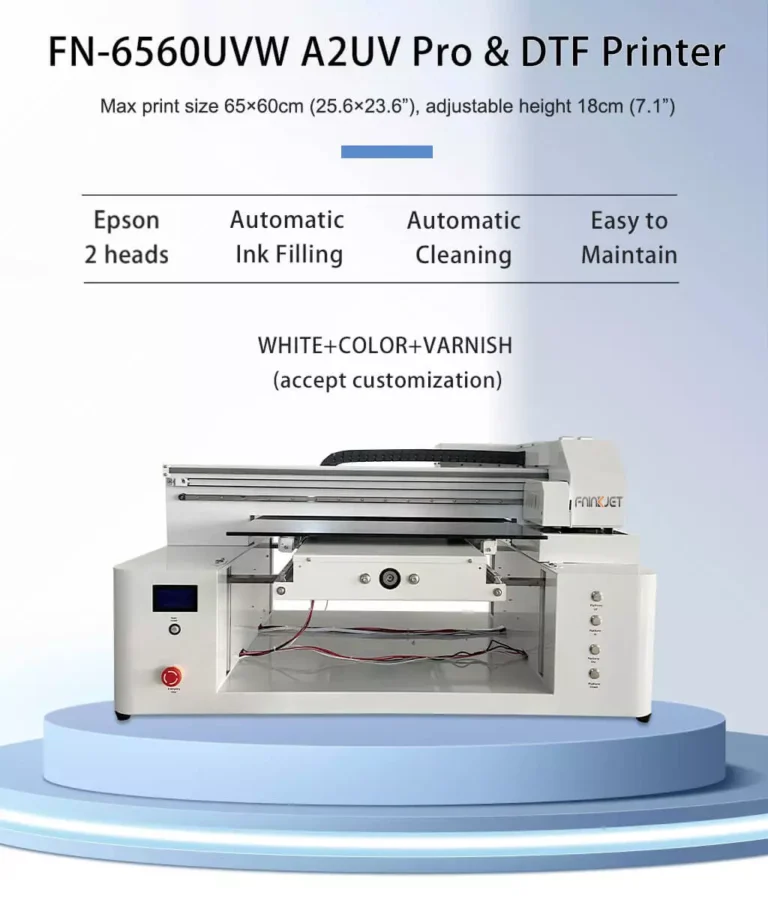

FN-6560UVW A2 UV Printer 6560 LED UV Flatbed Printer

Hot Sale 6560 A2 UV Printer for All materials, Support Varnish Embossement and UV DTF

FNINKJET A2 UV printer. With max print size 65*60cm(25.6*23.6 inch), max print thickness 18cm(7.1 inch). With high resolution, with independent board, the speed won’t slow down anymore. High performance for cylinder application. It can print directly on different materials such as pen, phone cases, golf, wood, gift, stone, artwork, acrylic, leather, glass, UV DTF film and so on, support large ink jet distance 5mm.

Model: FN-6560UVW A2 Plus LED UV Printer
Printhead: Original brand new Epson XP double heads
Ink color: CMYKW+Varnish, with refill ink tank 500ml
Max print size: 650*600mm, adjustable height 0-18cm

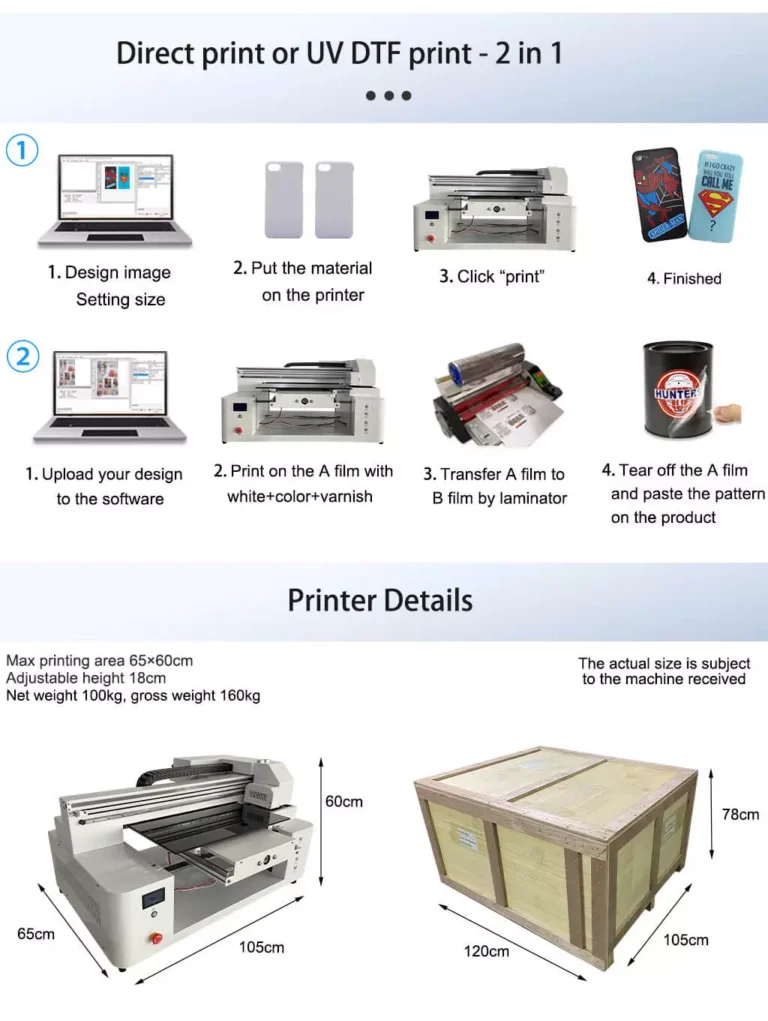

Direct to all materials, dry at once, support UV DTF
Multifunction: Phone case / gift item / acylic / metal / glass etc.

A2 Size UV Printer Features

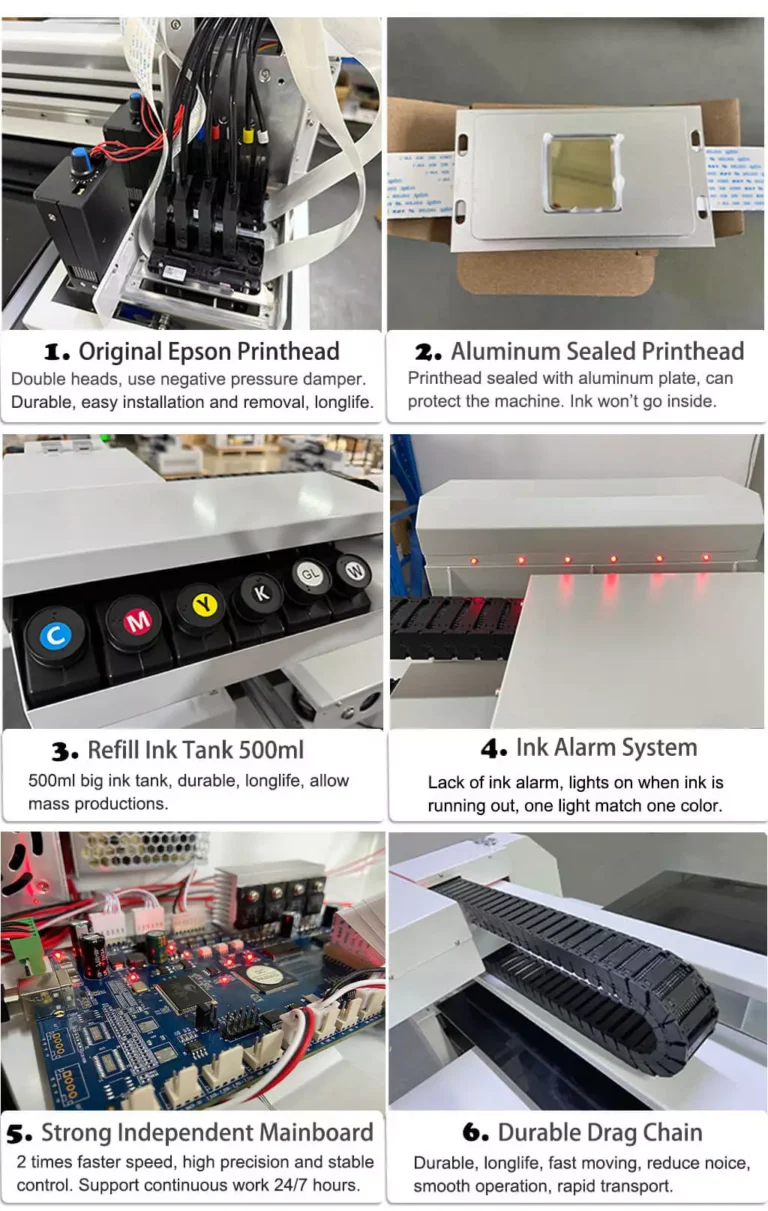

* Original brand new Epson XP print head and powerful motherboard
* Most stable performance, can print continuously for 24 hours
* Automatic cleaning print head function
* Ink alarm system, light will be on when ink level is low
* White ink circulation system, can protect the print head
Effectively prevent white ink from clogging the print head
Extend the service life of the head and make printing effect more colorful

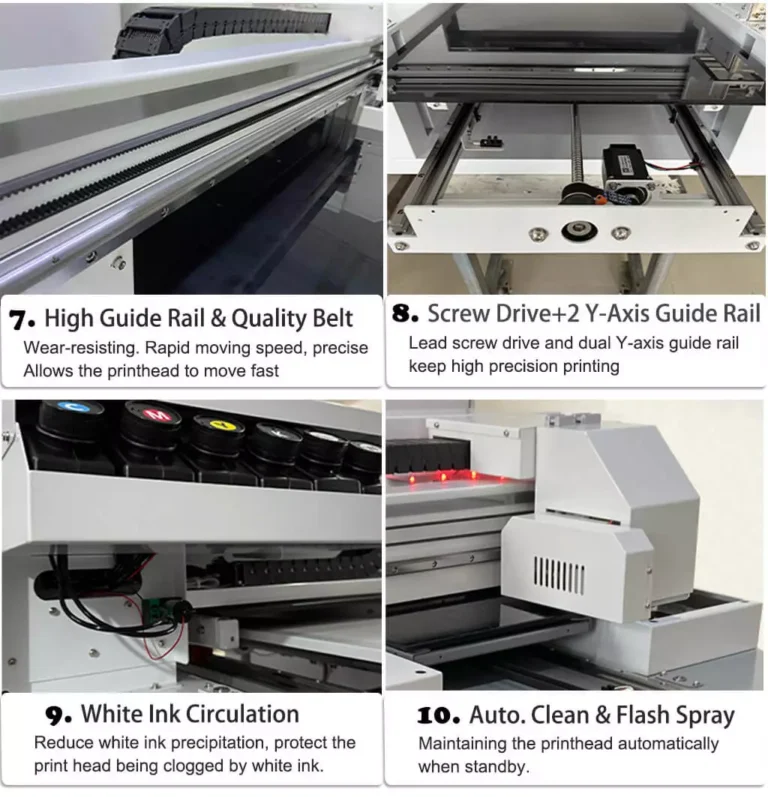

* Servo motor with high printing accurate precision
* Intelligent unidirectional/bidirectional printing
* Integrates automatically blank skipping system
* Maintaining the print head by flash spray automatically when standby
* Support emergency stop while in printing
* High resolution 720*2880 dpi, no printing line
* Printing speed won’t slow down after a long time
* Updated software, intelligent ink volume control, automatic ink counting, saving ink

Parameter

Model	FN-6560UVW A2 UV printer plus
Printing Technology	One Printer head advanced Micro Piezo 6 color uv inkjet technology
Ink colors	Cyan, magenta, yellow, black, white, varnish; CMYK+W+Varnish (varnish is optional)
Printing speed	8pass, 4.5 SQM/H
Print head	Epson original XP600 (single head or double head)
Max resolution	720*2880 dpi
transmit data	USB
Max Printing Size	A2+ (650mm×600mm)
Max thickness	180 mm
Printer head Protection	Intelligent Self Protect System
Ink system	Continue ink supply system with damper cartridge
Ink bottle	Refill Ink Tanks with 500ml per bottle
Height adjustment	Semi-automation
Ink consumption	10 ML/SQM
Voltage/ Power	VAC220/110 ± 10 ，50HZ~60HZ，Power ≤ 35W
UV lamp power	50 W
UV lamp Temperature	60 degree(UV lamp surface) UV lamp surface
UV lamp Temperature	40 degree (1cm far from lamp surface)
Working environment	10-35 degrees （50°-95°F）, humidity 20～80%
Head Cleaning method	Automatic / Manual
Printer/packing size	1056560cm / 12010578cm
Net /Packing weight	100kg / 160kg
Printing Software	Ultraprint, better print, Ruicai RIPrint, print white and color by one pass
Computer system	Windows system, Gigabit net, network adapter contain below character: Gigabit、GBE、10/100/1000M、RTL8169
Ink Type	UV ink/ Textile Ink/ Edible ink
Language	English, Chinese
Special Remarks	Customized service is available
Standard Enclosure	Software 1 set, power line 1 set, Network line 1set, guidebook 1 set
Application	Phone case / ABS plastic / acylic / metal / glass / ceramic etc.

After-service and Warranty

1. Online training one-to-one (by WhatsApp, WeChat, email, video, etc).
2. English operation video, English technician online free training.
3. Printer with one year warranty and lifetime maintenance.
4. Seller will replace the spare parts for free in one year except for the print head, CISS, and clean unit.

Packing&Shipping

Shipping details
Packing type	Fumigation free wooden case/PLY wood case
Printer size	1056560cm
Packing size	12010578cm
Gross weight	100kg
Volume weight	160kg
Package included	USB cable/power cable/program/sensor/damper
Shipping Type	Express(DHL,EMS,UPS,TNT,FedEx)/Air shipping/Sea shipping
Certificate	CE, SGS, MSDS, CO, SASO etc

A UV printer (short for Ultraviolet printer) is a type of digital printing machine that uses ultraviolet light to cure or dry ink as it is printed. Unlike traditional printers that allow ink to absorb into the material or air-dry, UV printers instantly harden the ink using UV light, which enables printing on a wide variety of surfaces.

What a UV Printer Can Do:
1. Print on Almost Any Material
Plastic, Glass, Wood, Metal, Ceramic, Leather, Acrylic, Paper/cardboard, Fabric (limited use)
2. High-Quality, Full-Color Printing
Photorealistic prints with high resolution. Crisp details and vivid colors. Spot gloss and texture effects (with clear varnish layers).
3. Print on Uneven or 3D Surfaces
Unlike regular inkjets or laser printers, UV printers can print over slightly raised or textured surfaces.
4. Durable & Scratch-Resistant Prints
The cured ink is very durable, making it great for products that will be handled, exposed to sunlight, or placed outdoors.
5. Custom & Short-Run Jobs
Perfect for on-demand printing with no need for plates or screens. Ideal for prototyping, customization, and personalization (e.g., phone cases, promotional items).
6. Special Effects
Raised printing (embossed texture). Gloss, matte, or selective varnish finishes.

Common Applications:
Signage and Displays. Product Packaging Mockups. Custom Phone Cases. Promotional Items (pens, USBs, etc.). Industrial Labels and Panels. Art Reproductions. Awards and Plaques

If you’re looking into one for business, it’s especially useful for customization, small-scale production, or niche markets where flexibility and speed are key. Would you like help choosing a model or exploring business ideas with a UV printer? Send us inquiry.
